The robot that plugs
in your connectors.
Robots are cheap.
Setting them up is not.
-
Plug in
The robot plugs it in.
It finds the port, pushes the connector home and feels it click.
-
Check
It checks every one.
Seated? Held? Every wire? It runs your test and logs the result.
-
Measure
It measures every unit.
Two cameras check the board and the grip before every press.
-
New part
A new part is not a new project.
A new part needs a new fixture and the same checks.

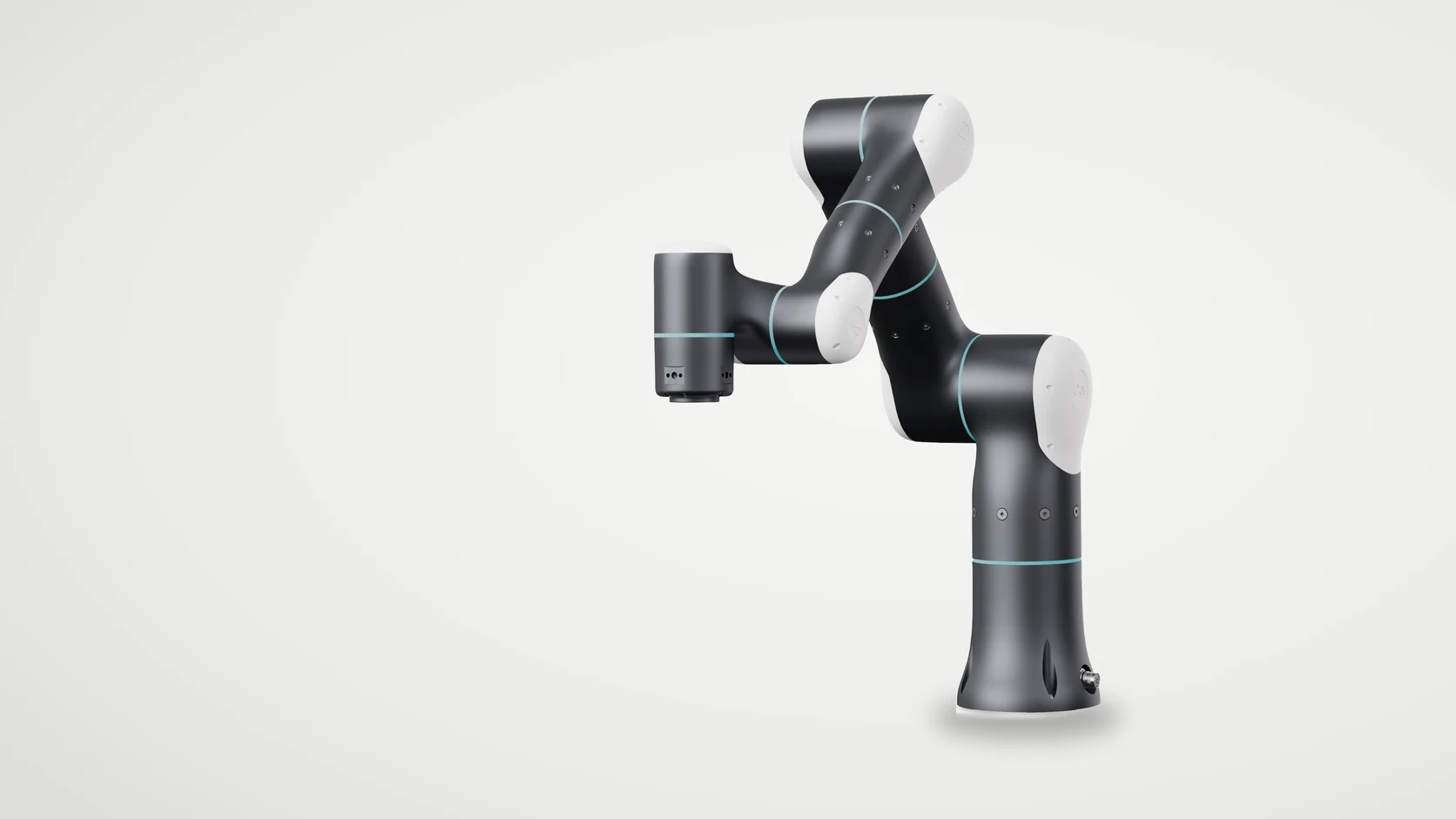

Meet the robot.
Concept
-
Your part. Your board rides in on its pallet. Your plug, your board, your test.
-
Vision. One camera finds the header. One below checks the plug in the fingers.
-
Touch. It presses, feels the latch click, then pulls. A plug that moves fails.
-
Tester. Seated? Held? Every wire? The light says pass or fail.
-
Brain. Every unit logged: what it saw, what it felt, the verdict.
-
Reset. Next unit in. Good ones to the tote. Rejects locked away.
